SuperKey Multifunction Macro Keyboard¶

What Is SuperKey?¶

SiFliSparks/SuperKey is an SF32LB52-based reference for a multifunction macro keyboard with displays. Its open-source firmware runs on RT-Thread and LVGL v9, drives three 128 × 128 GC9107 LCDs, three RGB LEDs, four physical keys, a rotary encoder, and an SHT30 temperature/humidity sensor, and connects to a computer as a composite USB HID/CDC device.

SuperKey is more than a shortcut keypad. It combines these product paths in one working reference:

• USB HID keyboard and media-control output;
• computer performance, weather, configuration, and power-state data over USB CDC or a 1 Mbps UART;

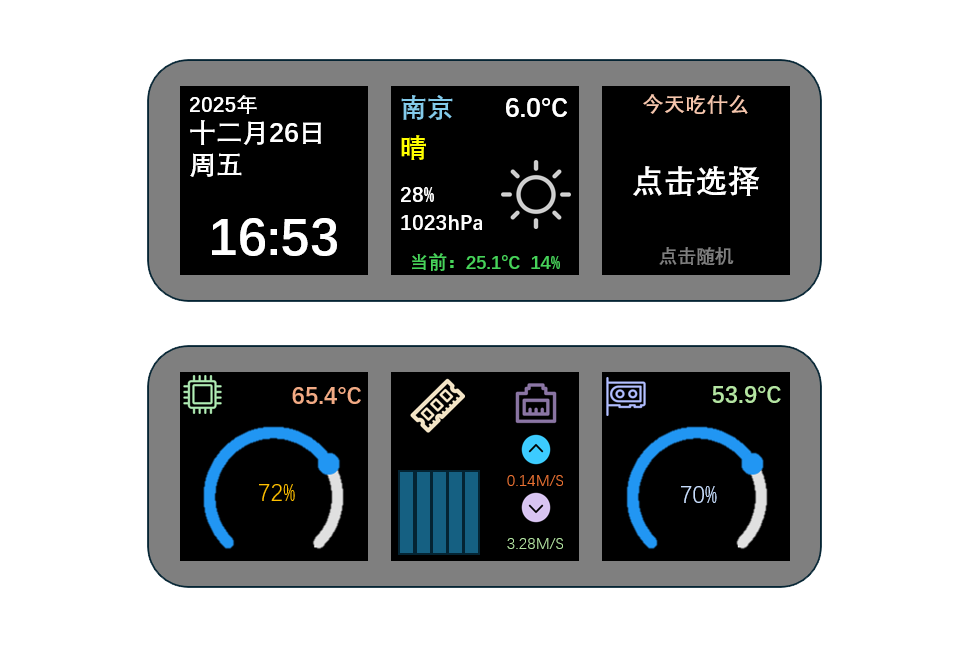

• three-display pages for performance monitoring, weather, clock, utilities, music, and custom key mappings;
• a companion SuperKeyHub application that gathers host data, configures functions, and triggers firmware updates;
• reproducible hardware through the open sf32-keyboard design.

Why the SF32 Implementation?¶

SuperKey needs graphics, multiple displays, a composite USB device, keys and an encoder, sensors, RGB effects, a filesystem, and optional audio. SF32LB52 keeps those real-time tasks on the MCU, so the device can boot its UI and provide basic HID behavior even when the companion application is not running. The host application handles computer telemetry and Internet data that are better owned by a desktop operating system.

That split suits desktop controllers, workflow keyboards, status panels, and compact HMIs, but it creates explicit dependencies. Advanced data displays require the companion application, drivers, and external APIs; firmware and host versions must remain compatible; and USB loss, host sleep, and damaged configuration need independent recovery tests.

Outcome, Scope, and Entry Criteria¶

Outcome: reproduce a version-locked SuperKey, validate HID, CDC, three-display UI, input, sensing, and sleep recovery, then change only one class of behavior while retaining build, communication, and regression evidence suitable for product review.

This page does not establish that the open PCB is production-ready or that every PC telemetry source, weather service, serial bridge, USB host, or operating-system version is compatible. Stock, weather, and performance data can depend on the SuperKeyHub version, third-party APIs, system permissions, and host hardware.

Before starting, have:

• SuperKey hardware assembled from the open design, including three GC9107 LCDs, keys, an encoder, and a USB data connection;
• a Windows 10/11 computer; upstream notes also mention a Mac experience, but treat it as an unqualified path;
• a SuperKeyHub version matched to the firmware;
• a SiFli-SDK environment, the recursively checked-out SDK submodule, and a working download/recovery connection;
• a valid QWeather API Key, API Host, and city configuration if weather is in scope;
• a test record for USB enumeration, serial logs, key behavior, display state, and sleep recovery.

Choose a Supported Baseline¶

The current release from the upstream main line is firmware v1.4.2. Its release notes require SuperKeyHub v1.8.x. Record the exact firmware tag, repository commit, and host version used for the baseline rather than writing only “latest.”

The upstream CI uses the following target. Install and export the SiFli-SDK environment before running it locally:

git clone --recursive https://github.com/SiFliSparks/SuperKey.git
cd SuperKey/SiFli-SDK
./install.sh
. ./export.sh
cd ../app/project
scons --board=sf32lb52-superkey --board_search_path="../boards" -j8

On Windows, use the corresponding SiFli-SDK PowerShell install and environment scripts. Parallelism may change, but the board name, board search path, and submodule revisions belong in the build record.

Delivery Map¶

System Architecture and Dependencies¶

flowchart LR
    U["User\nkeys and rotary encoder"] --> F["SF32LB52 firmware\nRT-Thread + LVGL v9"]
    F --> D["Three GC9107 LCDs\nRGB LEDs, SHT30, optional audio"]
    F -->|"USB HID\nkeyboard and media events"| P["Windows / macOS host"]
    P -->|"USB CDC or 1 Mbps UART\ntelemetry, weather, configuration, power mode"| F
    H["SuperKeyHub\ncollection, configuration, update"] <--> P
    H <--> A["Weather API and host telemetry sources"]
    H -->|"CDC DFU"| F

Treat failures as five domains: device hardware/display, HID input, CDC/UART data channel, companion/system permissions, and external data services. A blank weather panel is not automatically a firmware fault; the API key, API Host, city configuration, or data push may be responsible.

Stage 1 — Establish the Untouched Reference Baseline¶

Goal: prove the complete reference path before changing code.

1. Follow the upstream assembly material to verify LCD-cable orientation, switches, encoder, enclosure, and USB connector; record the PCB and firmware revisions.
2. Install the matched SuperKeyHub. Verify device enumeration, then test HID and CDC independently.
3. Configure weather credentials, the port, and 1 Mbps serial operation. Record behavior without the companion, then connect it and enable data delivery.
4. Verify three-display navigation, key mapping, media control, encoder, SHT30 data, LED effects, and one complete telemetry refresh cycle.
5. Cold-start and repeat. Save UI photos, companion logs, device logs, and the version-query result.

Evidence to retain: hardware revision, firmware tag/commit, SDK commit, companion version, OS, port and API configuration, USB enumeration, logs, displays, and input record.

Gate 1 exit criterion: two cold starts complete HID input, CDC data refresh, and three-display interaction; each failure domain can be distinguished through logs or observable state.

Stage 2 — Validate Fault and Recovery Boundaries¶

Goal: prove that common desktop interruptions do not turn the device into a demo that requires reflashing.

Gate 2 exit criterion: every applicable fault has a repeatable detection and recovery result, without undocumented manual state repair.

Stage 3 — Build a Reproducible Source Baseline¶

Goal: allow a second engineer to build, download, and repeat Stage 2 from a clean checkout.

1. Clone recursively and record both the SuperKey and SiFli-SDK commits.
2. Build cleanly with sf32lb52-superkey and the ../boards search path.
3. Save the build log, memory/partition output, download script, generated images, and serial log.
4. Rebuild on a second computer or after deleting the build directory, download to the same hardware, and repeat the core regressions.

Gate 3 exit criterion: no untracked files, stale products, or manual binary substitutions are required to generate an image that passes Stage 2.

Stage 4 — Adapt One Product Variable at a Time¶

Goal: validate the change boundary while protecting the passing reference.

Gate 4 exit criterion: the change is reviewed, the original image is recoverable, and HID, CDC, display, input, sleep, and recovery tests pass.

Stage 5 — Product-Readiness Review¶

Before custom hardware or a pilot build, the team must answer:

• Will the product continue to depend on SuperKeyHub, administrator privileges, and a third-party weather service, and who owns those dependencies?
• How are firmware, companion, and protocol versions managed, and how are invalid combinations blocked?
• Which target PCs, USB hubs, cables, sleep policies, and security-software combinations have been tested?
• What are memory use, temperature, and current when three displays, USB data, LEDs, sensing, and optional audio run together?
• How do configuration, key mappings, and update state recover from power loss or damaged storage?
• Are the open PCB, enclosure, fonts, icons, music, and third-party APIs licensed for the intended distribution?

Gate 5 exit criterion: every residual risk has an owner, evidence, and disposition; the team has made a proceed, defer, or stop decision.

Handoff to Product Design¶

Carry forward the SF32 and memory selection, USB HID/CDC descriptors, three-display and backlight connections, input/sensor interfaces, power and sleep policy, filesystem and update partitions, companion protocol, production test points, and validated recovery route. Continue with SF32LB52x, the SF32LB52x Hardware Design Guide, SiFli-SDK Build, Flash, and Monitor, and Design for Production.

Authoritative Sources¶

• SiFliSparks/SuperKey firmware repository
• SuperKey v1.4.2 release
• SiFliSparks/SuperKeyHub companion repository
• SuperKey project documentation
• Open sf32-keyboard hardware
• OpenSiFli/SiFli-SDK
