SF32LB58x Hardware Design Guide — PCB Layout Guidelines¶

6. PCB Layout Guidelines¶

6.1. Package Footprint Design¶

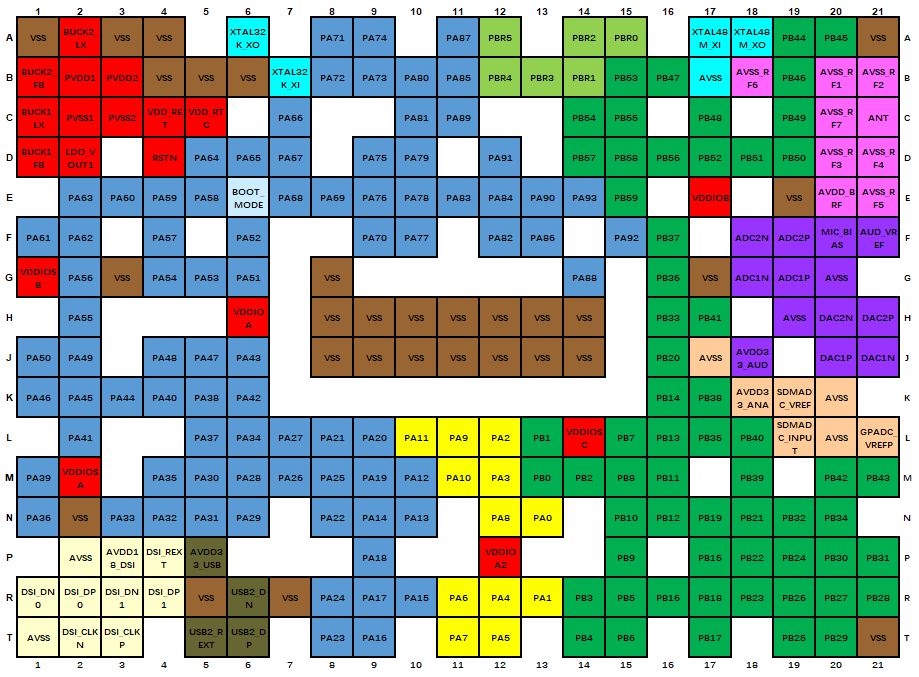

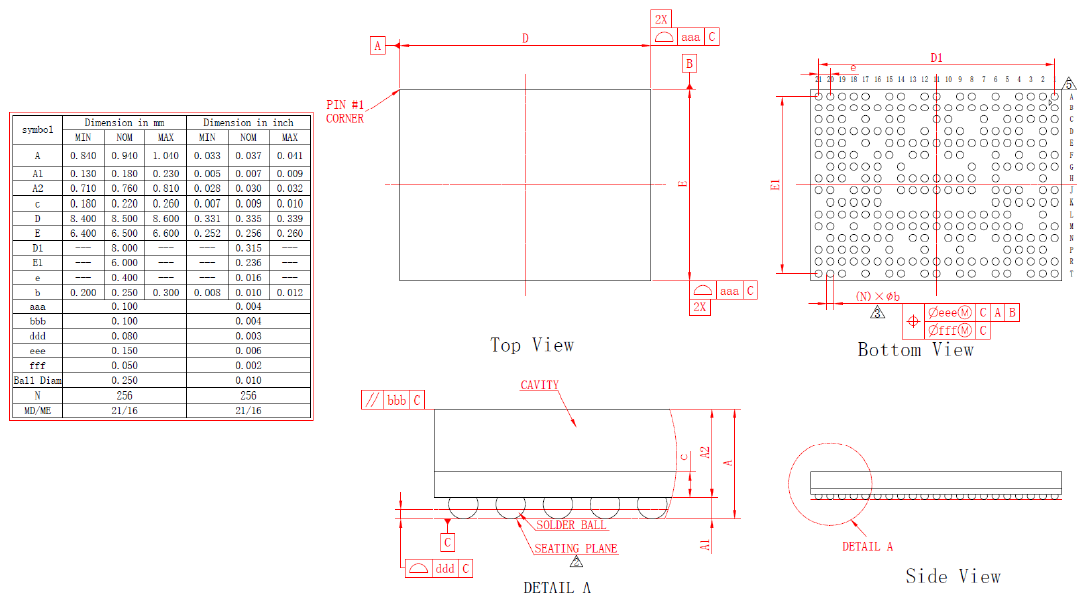

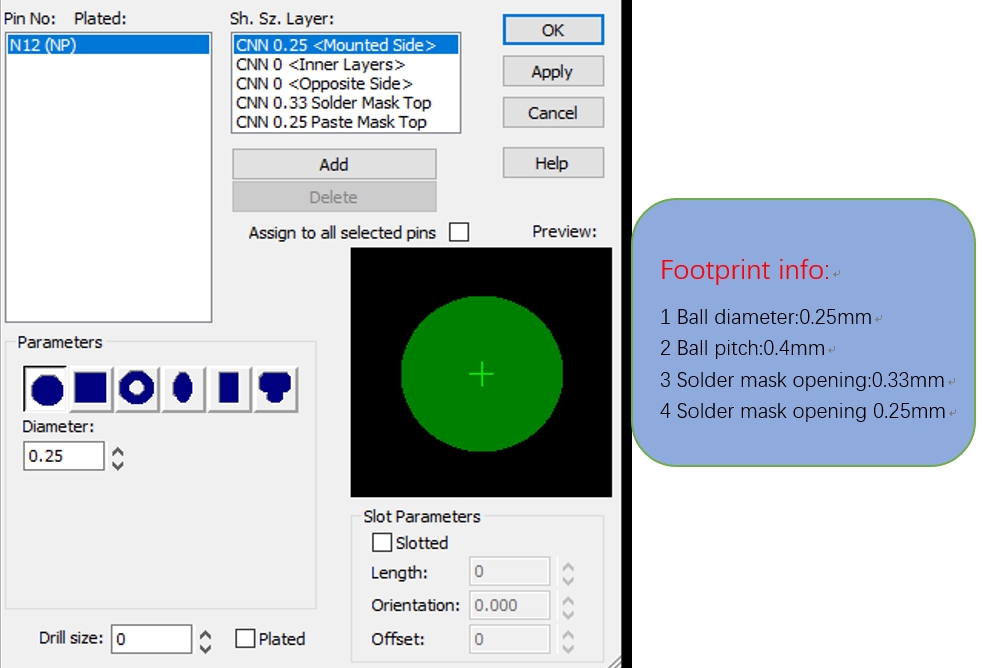

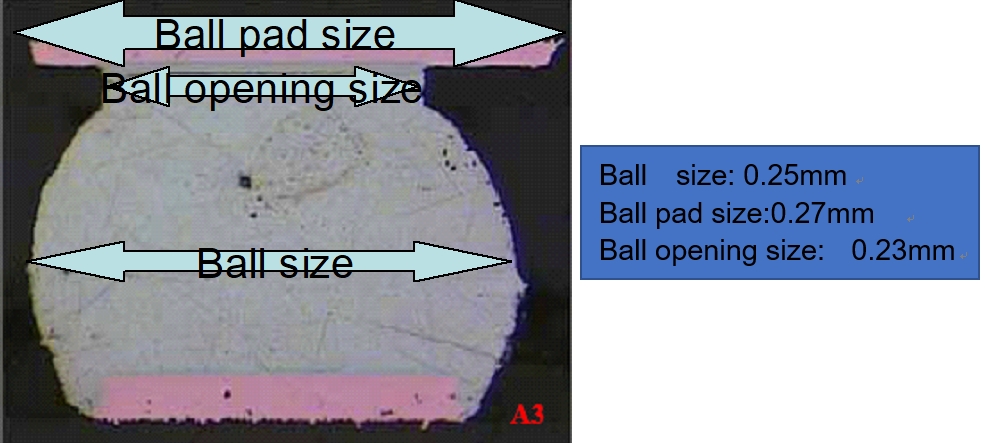

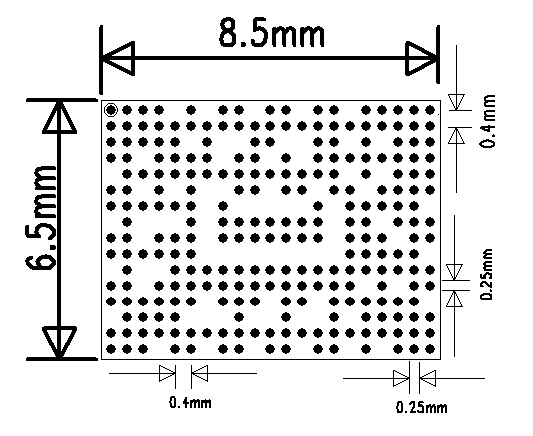

The SF32LB58x series uses a BGA256 package, 8.5 mm x 6.5 mm x 0.94 mm, 0.4 mm pitch. Refer to the official Datasheet for full package qualification data.

6.2. PCB Stack-Up¶

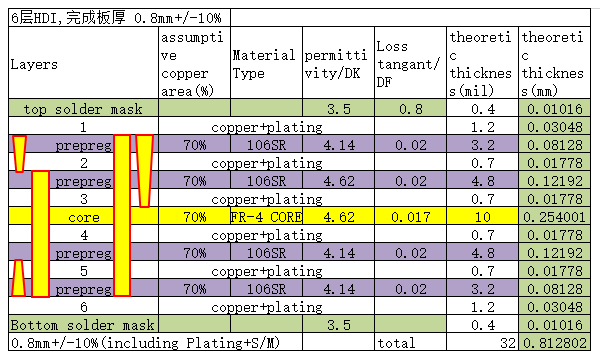

The SF32LB58x series layout supports single- or double-sided assembly. The PCB must be an HDI board — PTH is not supported; a 6HDI-2 stack-up is recommended.

6.3. General PCB Design Rules¶

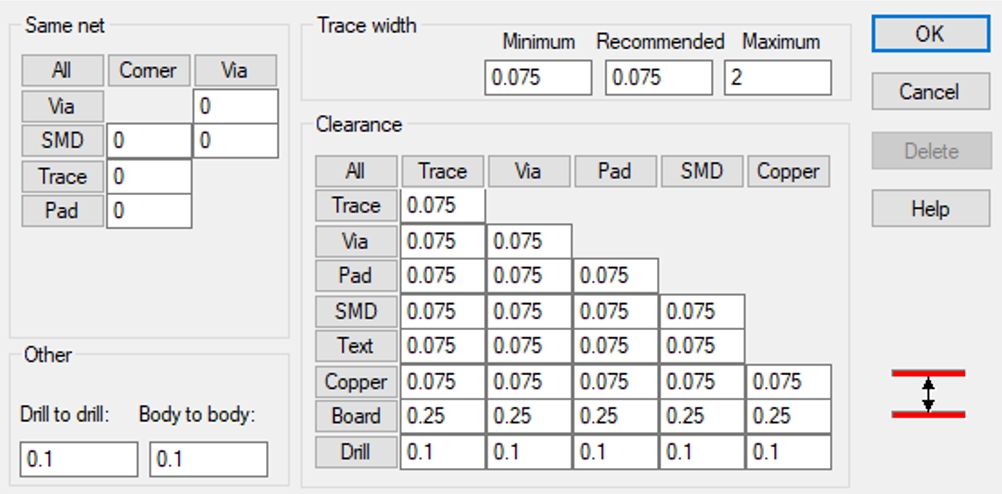

Refer to the general PCB design-rule figure in the official Datasheet (dimensions in mm).

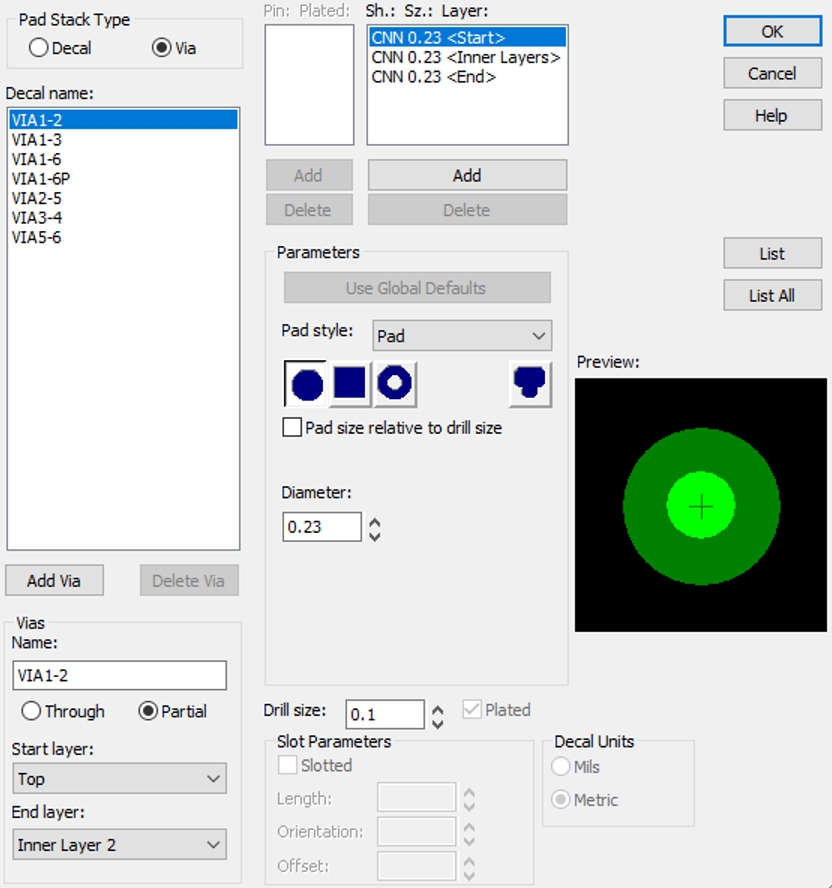

6.3.1. Blind Via Design¶

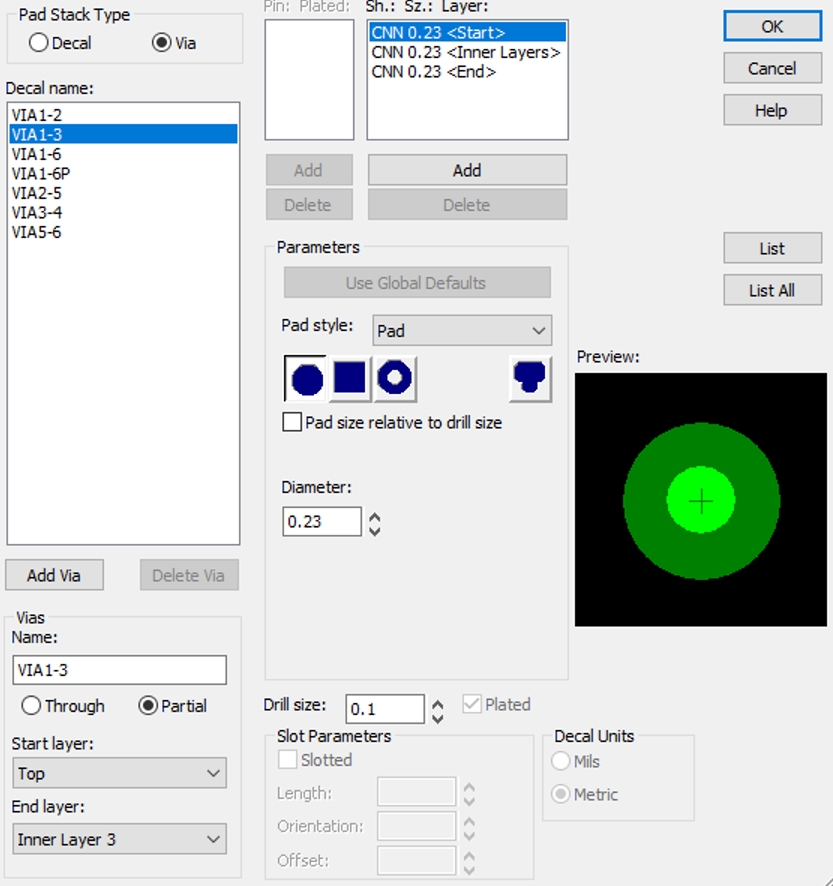

Refer to the blind-via design figures (layers 1-2 and 1-3) in the official Datasheet (dimensions in mm).

6.3.2. Buried Via Design¶

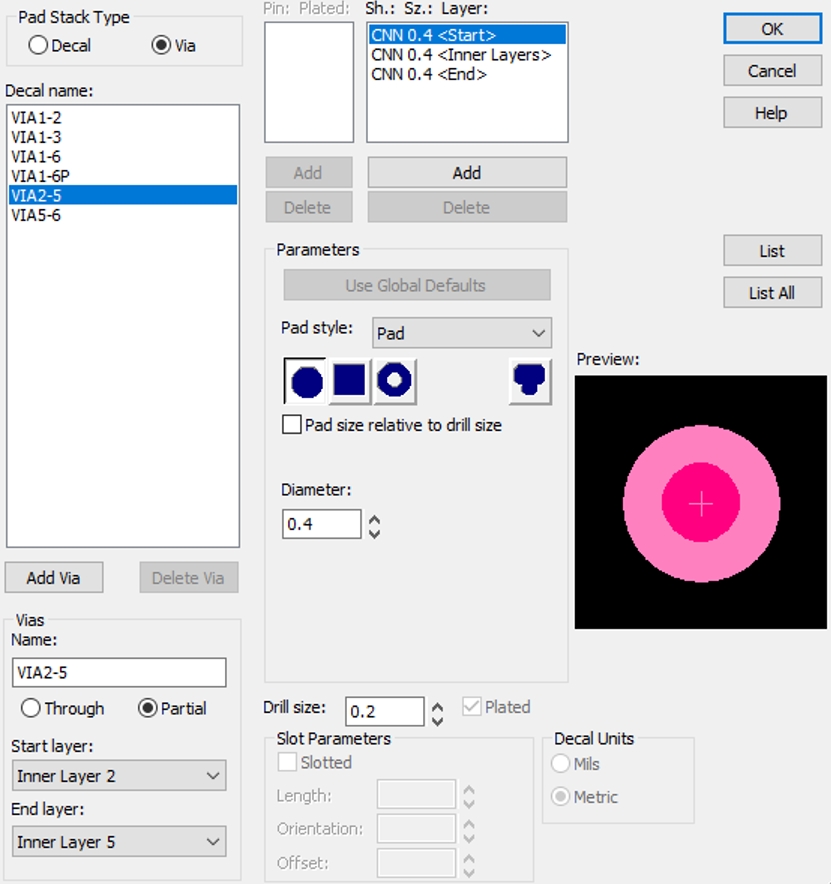

Refer to the buried-via design figure (layers 2-5) in the official Datasheet (dimensions in mm).

6.4. Trace Fanout¶

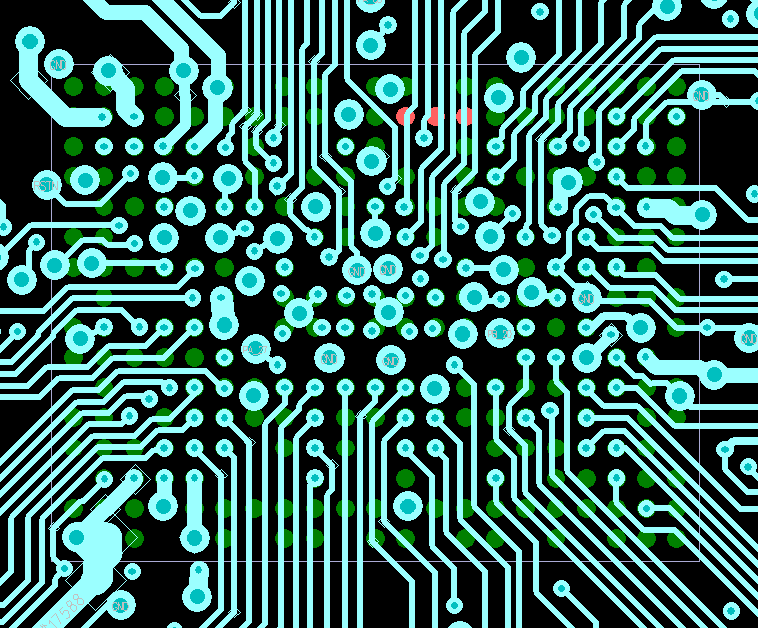

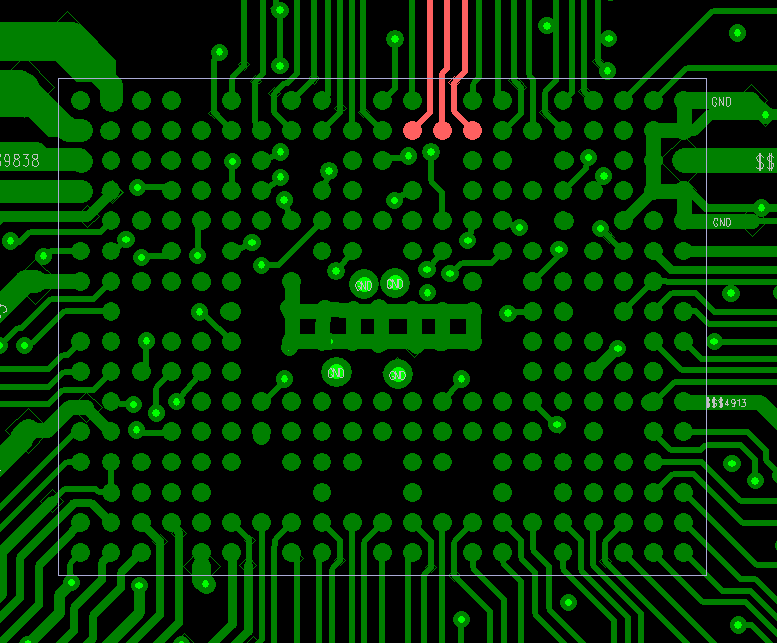

The first two rows of BGA balls are fanned out on the top layer; the remaining balls are fanned out through vias to inner layers.

6.5. Clock Interface Routing¶

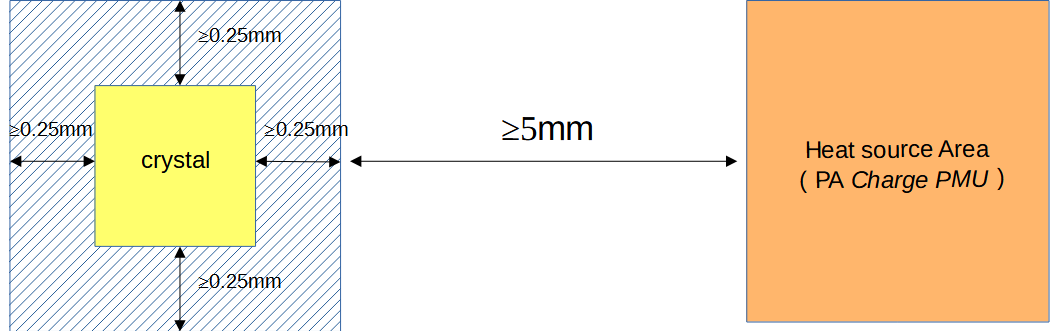

Place the crystal inside a shield can, more than 1 mm from the PCB board edge, and as far as possible from heat-generating components (such as PA, charging, and PMU circuitry) — ideally more than 5 mm away — to avoid affecting crystal frequency offset. Keep the crystal keep-out zone at least 0.25 mm from other metal or components.

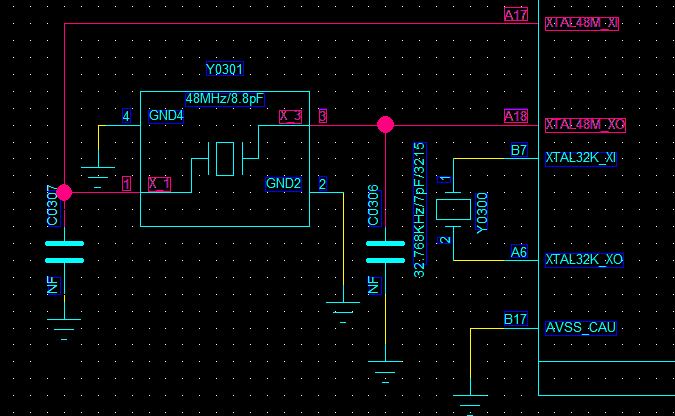

Route the 48 MHz crystal on the top layer with a length of 3-10 mm, trace width 0.075 mm, with full 3D shielding, and route away from VBAT, DC/DC, and high-speed signal lines. Keep the top layer and adjacent layer beneath the 48 MHz crystal area clear of any other routing.

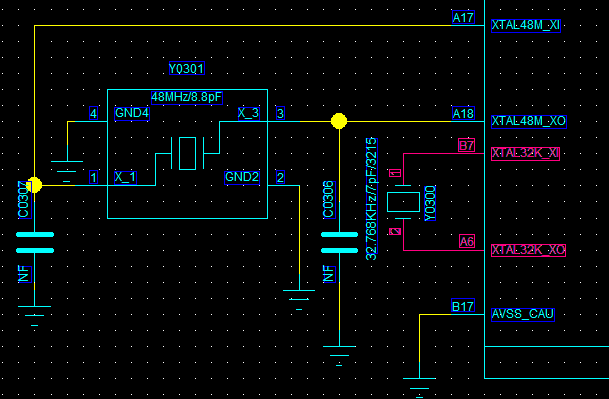

Route the 32.768 kHz crystal on the top layer with a length ≤10 mm, trace width 0.075 mm, and 32K_XI/32K_XO parallel-trace spacing ≥0.15 mm, with full 3D shielding. Keep the top layer and adjacent layer beneath the crystal area clear of any other routing.

6.6. RF Interface Routing¶

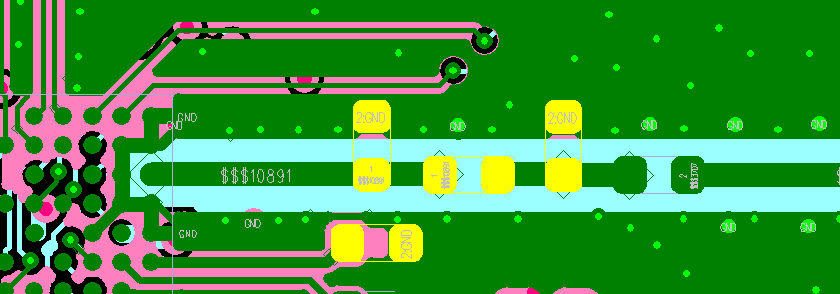

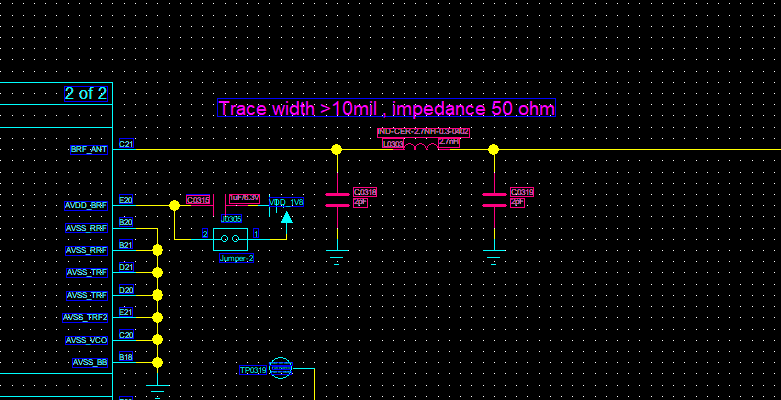

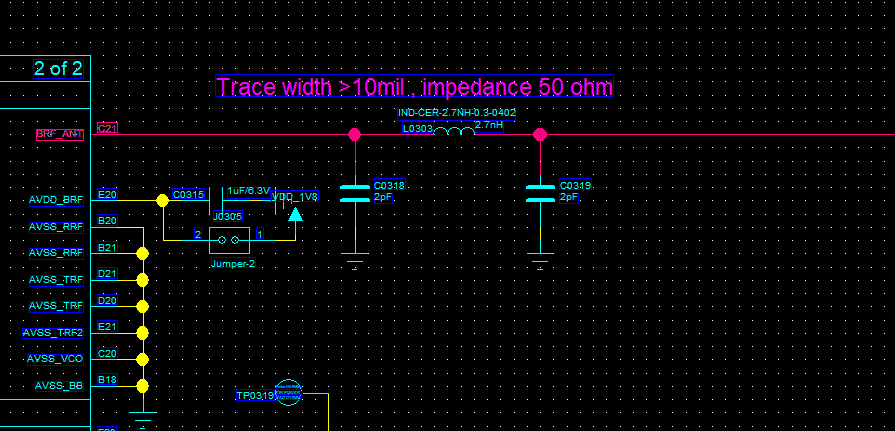

Place the RF matching circuit as close to the chip as possible, not near the antenna end. Place the AVDD_BRF RF power decoupling capacitor as close to the chip pin as possible, with its ground pin vias landing directly on the main ground plane.

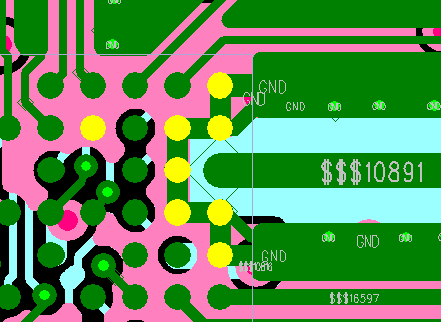

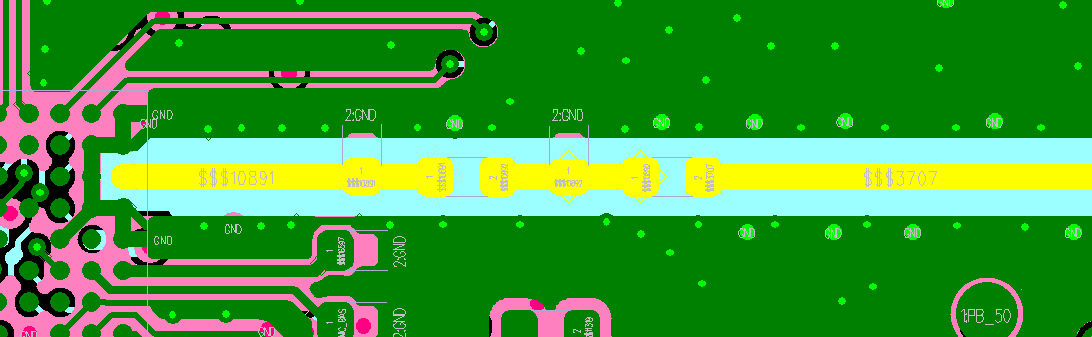

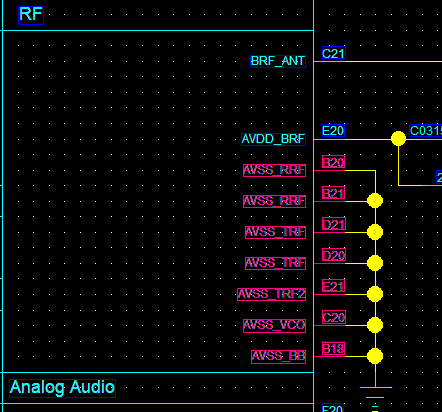

Route RF traces on the top layer where possible to avoid vias that would degrade RF performance; use a trace width greater than 10 mil, apply full 3D shielding, and avoid sharp or right angles. Add extra shielding ground vias along both sides of the RF trace, and control the RF trace to 50 Ω impedance. Keep DC-DC, VBAT, and high-speed digital signals (such as the crystal, high-frequency clocks, and I2C/SPI/SDIO/I2S/UART interface signals) out of the RF routing area. AVSS_RRF, AVSS_TRF, AVSS_TRF2, AVSS_VCO, and AVSS_BB are RF circuit ground pins that must be well grounded — place blind vias directly on their pads connecting to the main ground.

6.7. Audio Interface Routing¶

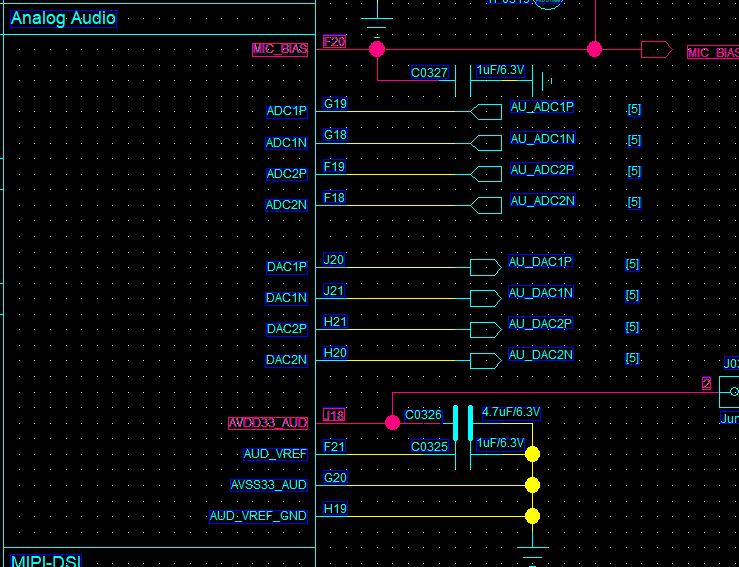

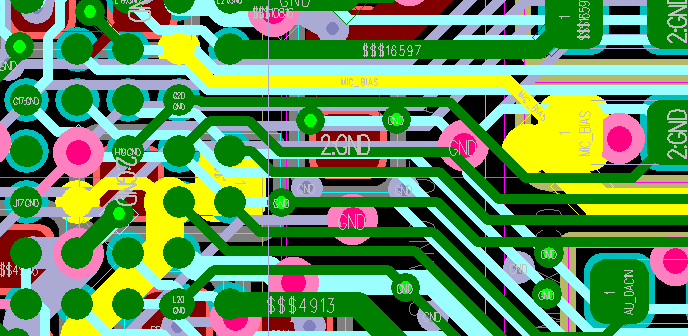

Place the AVDD33_AUD audio-supply decoupling capacitor close to its pin, with its ground pin well connected to the main ground. Place the MIC_BIAS microphone-supply decoupling capacitor close to its pin, similarly well grounded. Place the AUD_VREF decoupling capacitor close to its pin.

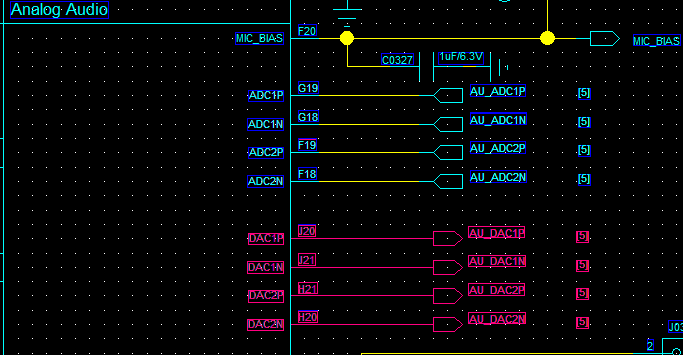

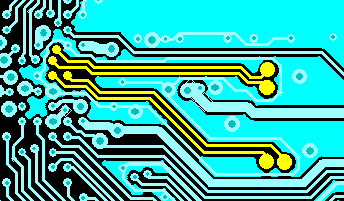

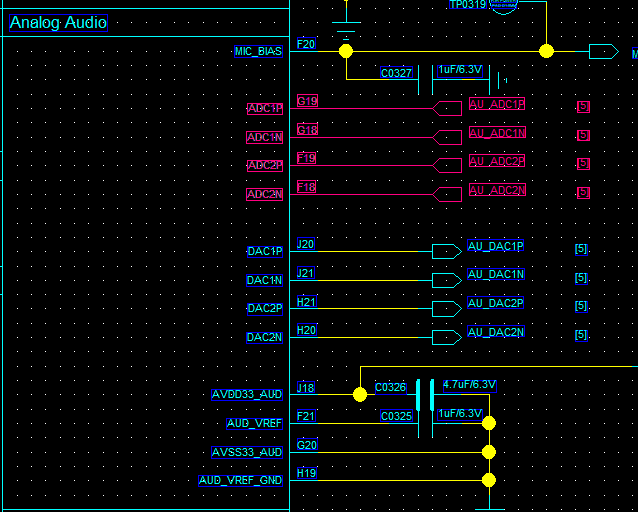

AU_ADC1P/AU_ADC1N and AU_ADC2P/AU_ADC2N are the two analog input pairs — place associated components as close to their pins as possible, route each P/N pair as a differential line with as short a trace length as possible, apply 3D shielding to the differential pair, and keep other strongly interfering signals away from these traces.

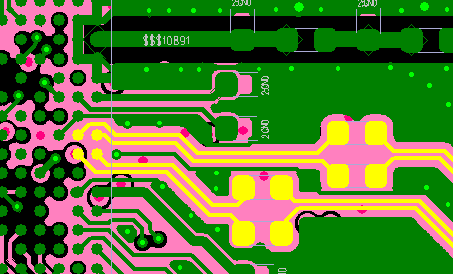

AU_DAC1P/AU_DAC1N and AU_DAC2P/AU_DAC2N are the two analog output pairs — place associated components as close to their pins as possible, route each P/N pair as a differential line as short as possible and under 2 mm, with trace parasitic capacitance below 10 pF and a differential trace width of 0.075 mm. Apply 3D shielding to the differential pair, and keep other strongly interfering signals away from these traces.

6.8. USB Interface Routing¶

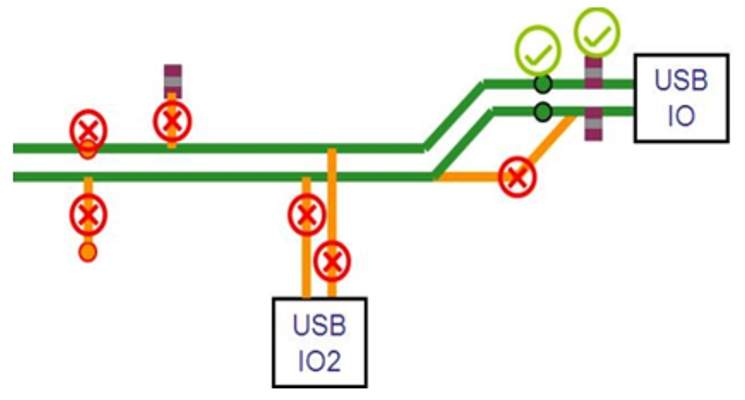

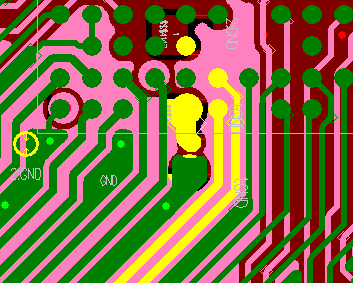

Place the AVDD33_USB decoupling capacitor close to its pin, and place the USB2_REXT calibration resistor close to its pin. USB traces must pass through the ESD-protection component pins before reaching the chip, with the ESD device's ground pin well connected to the main ground. Route USB DP/DN as a differential pair controlled to 90 Ω differential impedance, with 3D shielding applied.

6.9. SDIO Interface Routing¶

The SF32LB58x provides 2 SDIO interfaces, SDIO1 and SDIO2. Route all signals of each SDIO interface together rather than splitting them — total trace length ≤50 mm, with intra-group length control ≤6 mm. Apply 3D shielding to the SDIO clock signal, and shield the DATA and CMD signals as well.

6.10. DSI Interface Routing¶

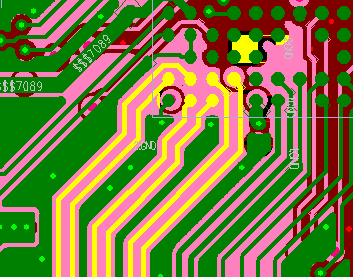

Place the AVDD18_DSI decoupling capacitor close to its pin, and place the DSI_REXT calibration resistor close to its pin. Route DSI signals as differential pairs controlled to 100 Ω differential impedance, with clock and data length-matched: intra-pair skew ≤0.5 mm and inter-pair skew ≤2 mm. Apply 3D shielding to each differential pair.

6.11. DC-DC Circuit Routing¶

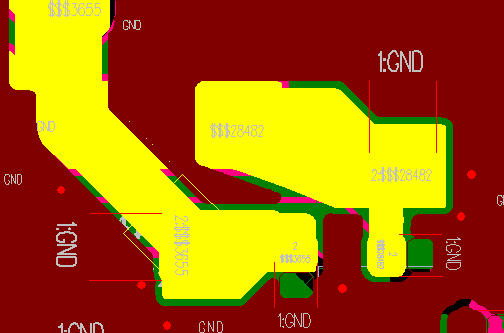

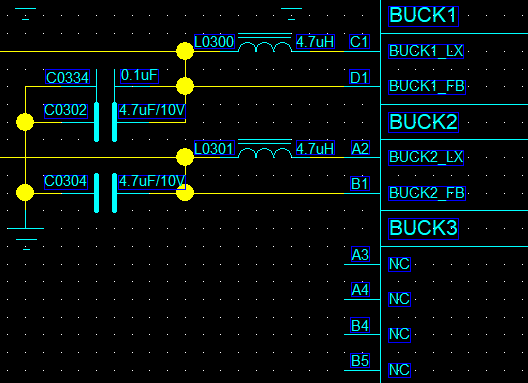

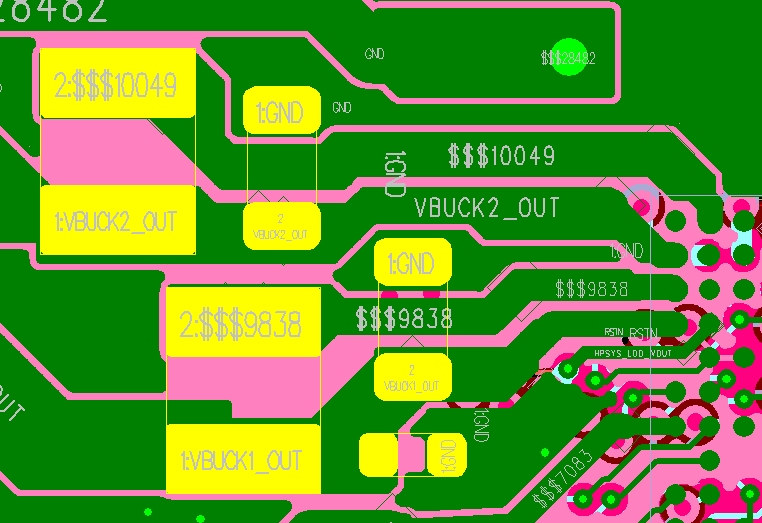

Place the DC-DC power inductor and decoupling capacitors close to the chip pins. Keep BUCK_LX traces as short and wide as possible to minimize loop inductance in the DC-DC circuit. Add extra ground vias on all DC-DC output decoupling-capacitor ground pins connecting to the main ground plane. The BUCK_FB feedback trace must not be too thin — keep it above 0.25 mm. Prohibit copper pour on the top layer beneath the power inductor, keep the adjacent layer as a complete reference ground, and avoid routing other traces through the inductor area.

6.12. Power Supply Routing¶

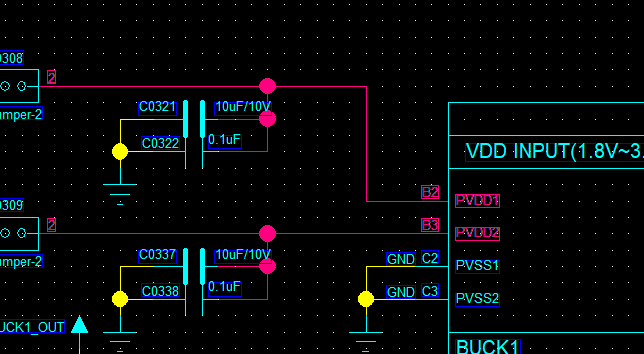

PVDD1 and PVDD2 are the power inputs to the built-in PMU module — place their decoupling capacitors close to the pins and keep the traces as wide as possible, never below 0.5 mm. PVSS1 and PVSS2 are PMU module ground pins that must be connected to the main ground through vias — avoid leaving them floating, which would affect overall PMU performance.

6.13. LDO and IO Power Input Routing¶

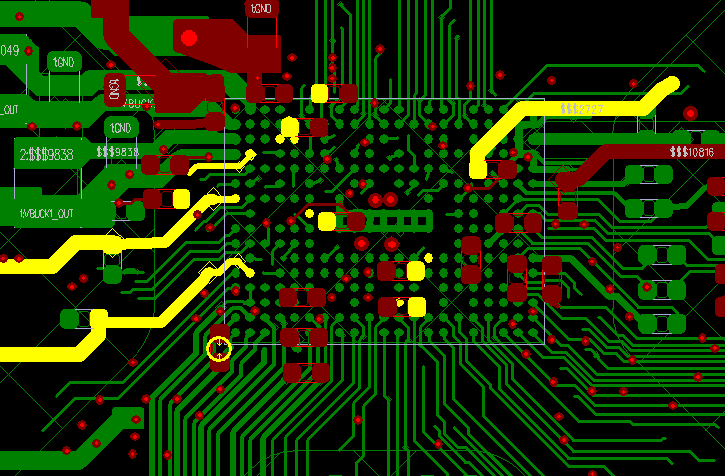

Place decoupling capacitors for all LDO outputs and IO power inputs close to their respective pins, with trace widths meeting the input current requirement — keep traces as short and wide as possible to reduce power-rail ripple and improve system stability.

6.14. Other Interface Routing¶

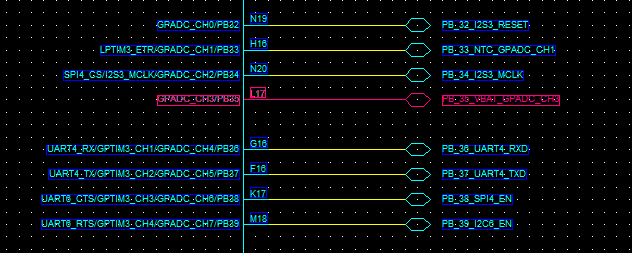

GPADC pin signal nets require full 3D shielding and must be kept away from other interference sources, such as battery-level sensing and temperature-sensing circuits.

Clock input/output pin signal nets, such as the 32 kHz output, likewise require full 3D shielding and must be kept away from other interference sources.

6.15. Chip Ground Routing¶

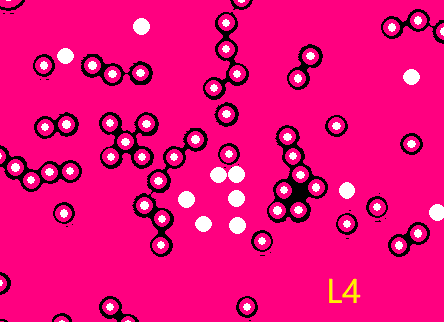

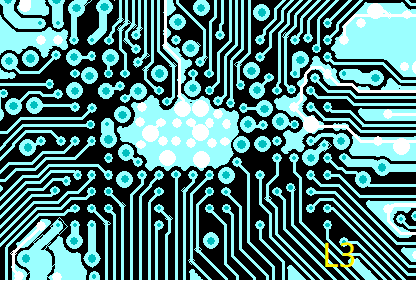

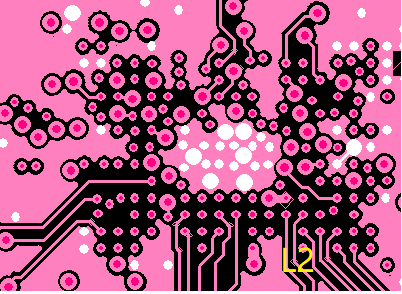

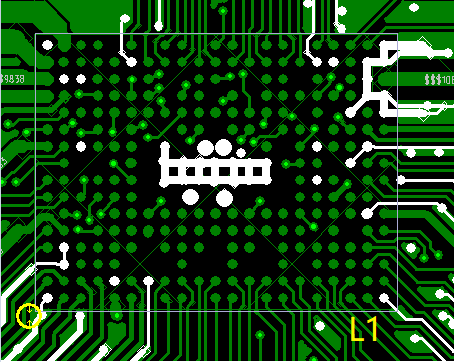

The ground network under the SF32LB58x chip's central area must be fully connected by traces, ensuring an adequate ground plane connected to the main ground plane through blind/buried vias.

6.16. EMI & ESD¶

Avoid long top-layer traces outside the shield can, especially for clock and power interference sources — route them on inner layers where possible. Place ESD protection devices close to the connector pins, routing signals through the ESD device before anything else to avoid signal branching. Ensure ESD device ground pins connect to the main ground through vias, with short and wide ground pad traces to reduce impedance and improve ESD performance.

6.17. Other Considerations¶

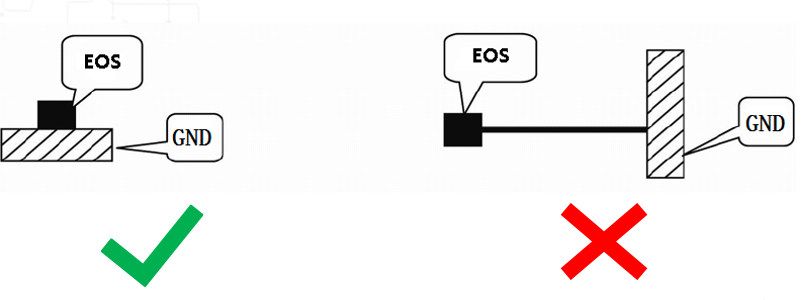

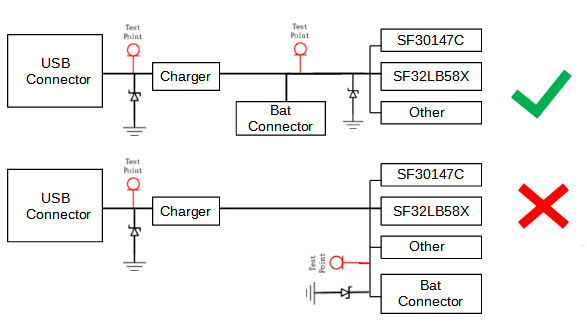

Place USB charging-line test points before the TVS diode, and place the battery-holder TVS diode before the platform connection — route so the signal always passes through the TVS before reaching the chip. Keep TVS ground-pin traces as short as possible.

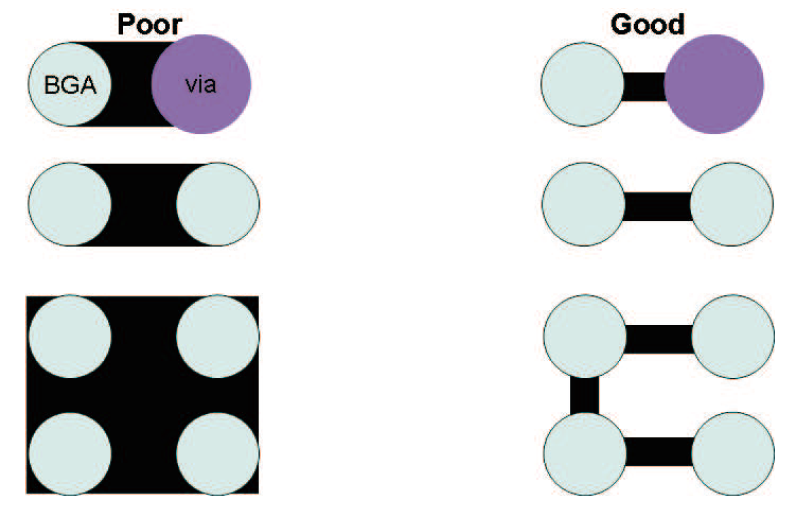

To keep solder mask off the pads and preserve solder-joint reliability, vias in BGA pads must land at the center of the ball — avoid off-center placement. For improved manufacturability yield, refer to the BGA ball-connection reference figures.
