SF32LB52-DevKit-Nano¶

Overview¶

The SF32LB52-DevKit-Nano is a small SF32LB52x development board for compact prototypes and embedded evaluation. It uses castellated half-holes around the board edge, making it suitable both as a stand-alone development board and as a solder-down module in early product prototypes.

The board measures 21mm x 51mm and exposes the key SF32LB52x resources needed for GPIO, UART, I2C, SPI, LCD, I2S, GPADC, PWM, USB, and analog audio development.

Board Variants¶

The N4 variant is suitable for compact control, Bluetooth, and simple UI applications. The R16N16 variant is better for larger display assets, external file systems, and applications that benefit from PSRAM.

The original source identifies both N4 V1.0.0 and R16N16 V1.0.0 as current board options. Confirm the exact assembly before choosing firmware, memory layout, or external Flash assumptions.

Board Highlights¶

• 21mm x 51mm compact board
• Castellated half-hole edge layout for solder-down prototypes
• USB Type-C power and USB-to-UART download/debug through CH340N
• GPIO, UART, I2C, SPI, GPADC, PWM, I2S, PDM, and wake-capable pins exposed
• QSPI LCD support through a 16-pin FPC path, typically using a 22-pin-to-16-pin adapter cable
• I2C touch-panel support
• Analog microphone input and differential audio output pins
• USB2.0 FS routed to edge pins
• Two user LEDs
• Power key and function key

When to Use This Board¶

Choose SF32LB52-DevKit-Nano when the prototype should stay close to a final product form factor.

• Build compact Bluetooth and display prototypes
• Solder the board onto a carrier PCB
• Test product-like pin assignments before custom board design
• Validate low-cost NOR-only or higher-memory PSRAM variants
• Bring up LCD, audio, sensor, and USB functions in a small footprint

For easier bench wiring and wider signal breakout, use SF32LB52-DevKit-Core-3p3. For a display-rich board with charger, TF card, microphone, and speaker amplifier, use SF32LB52-DevKit-LCD.

Power¶

The board supports three power approaches:

• USB Type-C power, recommended for development
• 3.3V input through the castellated pins when USB is not connected
• 5V input through the castellated pins when USB is not connected

When USB Type-C is connected, selected 3.3V and 5V pins can be used as outputs. Verify power direction before attaching external circuits.

The board includes a power switch controlled through the CH340N RTS# signal, allowing tool-controlled reset behavior.

Download and Debug¶

Use the USB Type-C UART interface for firmware download and serial logs.

• Download mode: enable BOOT in the download tool, then power or reset the board.
• Debug/log mode: disable BOOT, then power or reset the board.

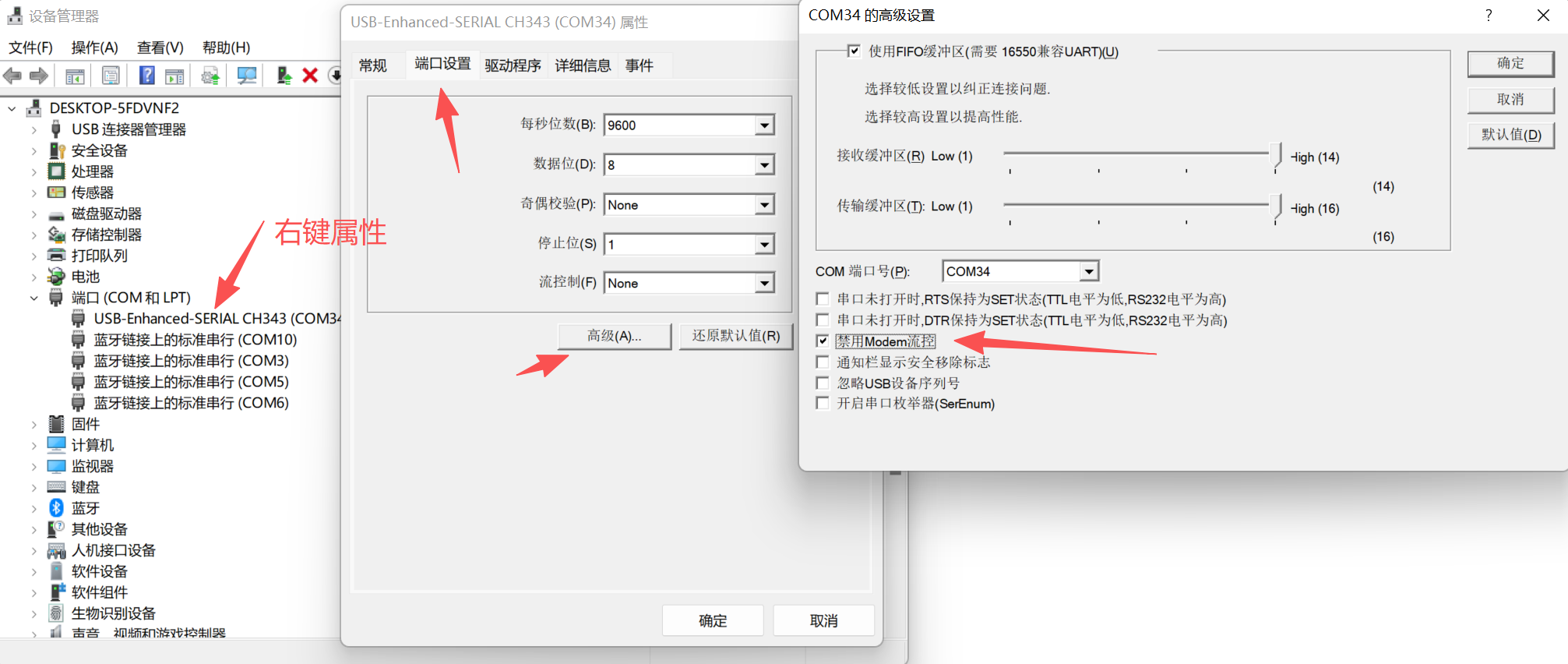

• RTS reset behavior: if opening the serial port unexpectedly resets or powers down the board, disable modem or hardware flow control in the host serial-port settings.

User Controls¶

Castellated Pin Summary¶

The Nano board exposes two edge pin groups. The first group carries audio, SPI1, debug UART, USB-adjacent power, and GPADC-capable pins. The second group carries SPI2, USB FS, wake-capable GPIOs, and power.

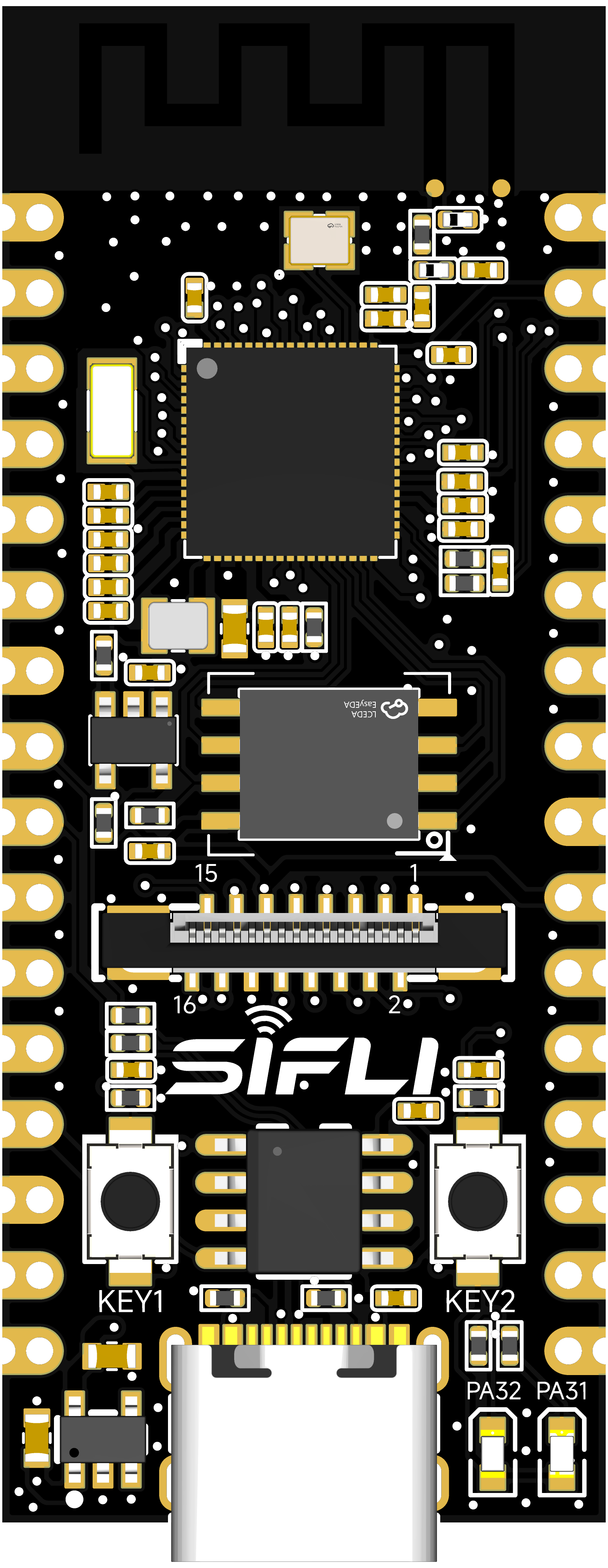

Front-Side Edge Signals¶

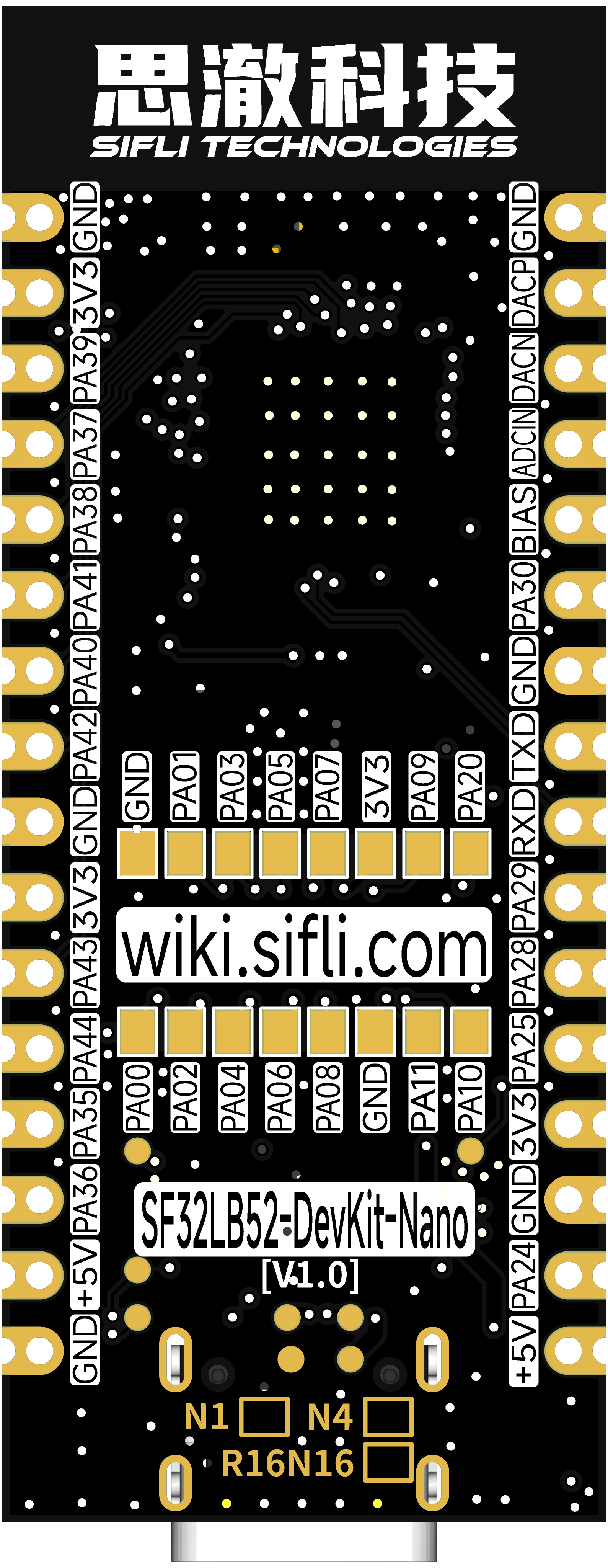

Back-Side Edge Signals¶

LCD Interface¶

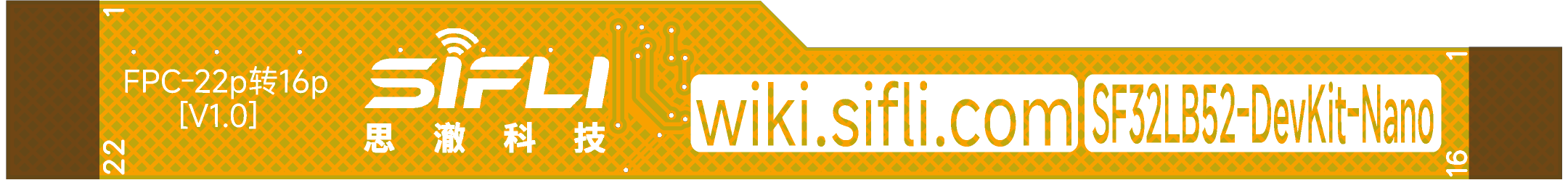

The board supports QSPI LCD panels through a 16-pin FPC signal set. The original board note describes connection to the Huangshan Pi 1.85-inch AMOLED screen through a 22-pin-to-16-pin FPC cable.

External Flash and SDIO Pins¶

The R16N16 variant includes external 16MB SPI NOR Flash. The storage pin group is:

These pins may be occupied by the mounted Flash depending on the variant. Check the exact board assembly before using them as expansion pins.

Audio Expansion¶

The Nano board exposes analog microphone input, microphone bias, and differential analog audio output. Add an external microphone circuit and audio power amplifier as required by the target product.
